String Wound Filters

I can't find any general information about string wound filters

what should I put here?

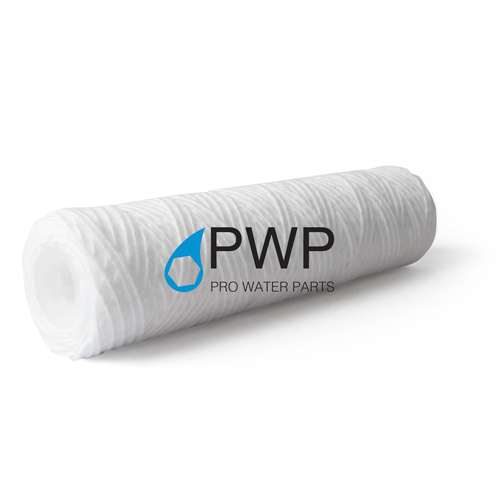

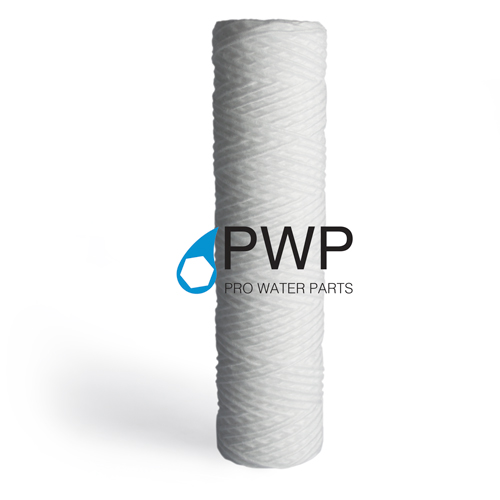

string wound filter cartridge is used in pre-filter application

enhanced design provides improved dirt-holding capacity over standard wound cartridges

provides long life-cycle

efficient filtration solution to reduce sediment, dirt, rust, and particles

more resistance to chemicals

cotton: organic solvent, water, oil, alkalinity solvent, beverage, and pharmaceuticals

polypropylene: water, dilute acids, oxidizing agents, plating solution

glass fiber: chemicals, organic solvent, strong acid and alkali, high temperature resistance

raw material:
PP - polypropylene
yarn - polypropylene, cotton, glass fiber
core - polypropylene, stainless steel

filtration precision:
1, 5, 10, 20, and 50 micron

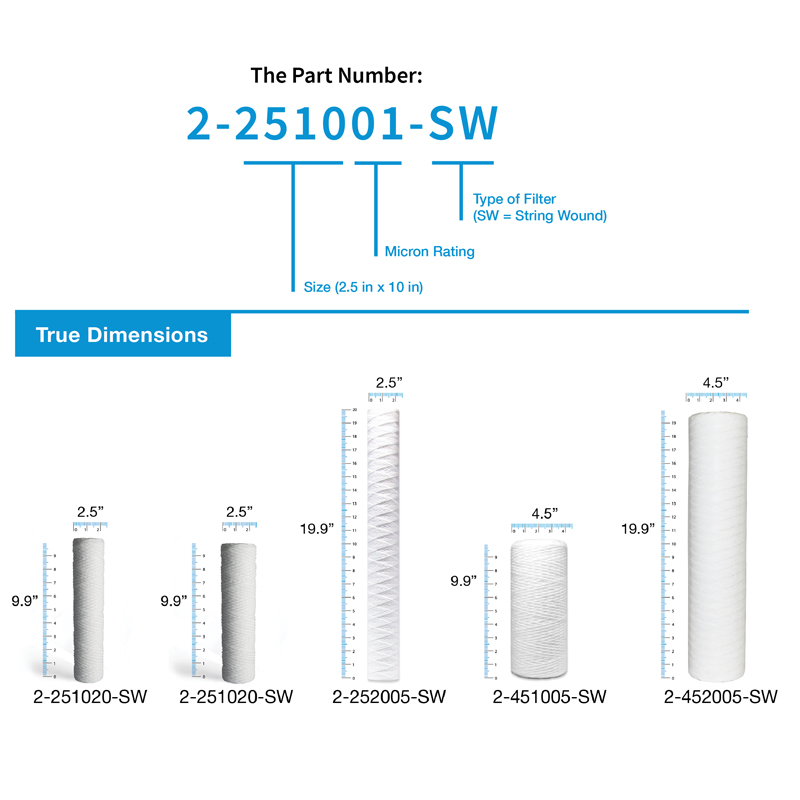

dimensions:
standard 2.0in x 10in; 2.5in x 10in and 20in
jumbo 4.5in x 10in and 20in

Filter Size 1 micron 5 micron 10 micron 20 micron 50 micron
2in x 10in

2.19gpm

2.21gpm

2.24gpm

2.27gpm

2.32gpm
2.5in x 10in

4.41gpm

4.43gpm

4.49gpm

4.54gpm

4.62gpm
2.5in x 20in

8.82gpm

8.87gpm

8.98gpm

9.08gpm

9.24gpm
4.5in x 10in

10.38gpm

10.43pm

10.48gpm

10.54gpm

10.61gpm
4.5in x 20in

20.76gpm

20.86gpm

20.97gpm

21.08gpm

21.23gpm

pressure drop:
1psi

max operating pressure (ºF):
176 ºF

max feed pressure resistance (psi):
74psi
