Grooved Melt Blown Filters

Melt blowing is a conventional fabrication method of micro- and nano-fibers where a polymer melt is extruded through small nozzles surrounded by high speed blowing gas. The randomly deposited fibers form a nonwoven sheet product applicable for filtration, sorbents, and more.

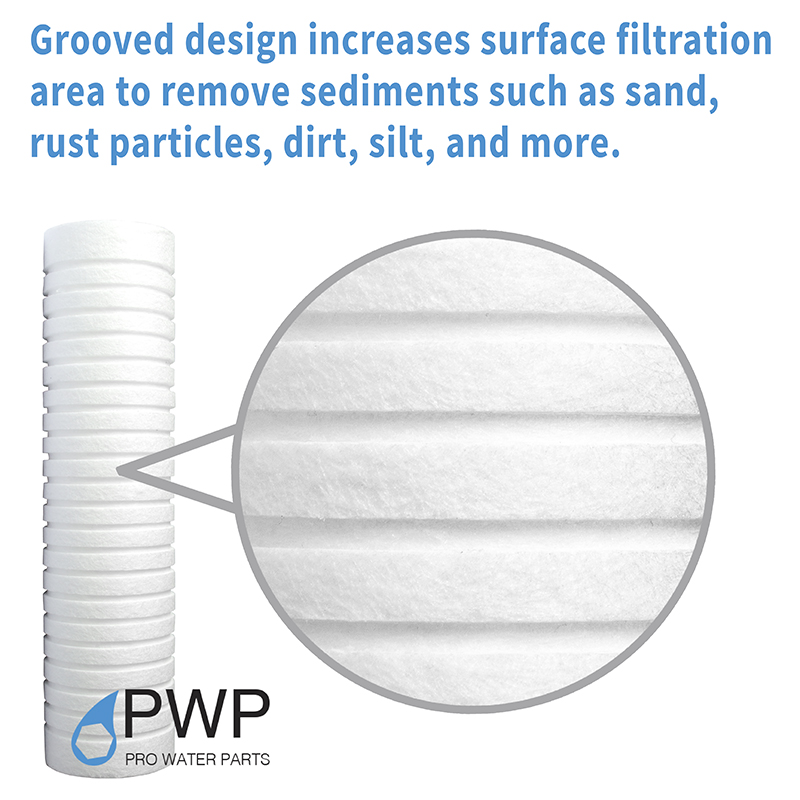

grooved design increases filtration surface area

depth filter cartridge is constructed of quality polypropylene filter media to ensure high efficiency in the inner layer

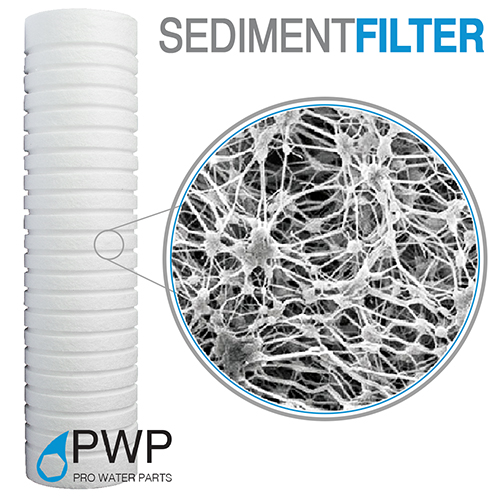

thermal bonded micro-fiber construction offers no fiber release and consistent flow rates as well as superior filtration performance

no fiber releases

high dirt-holding capacity

materials are FDA listed as acceptable for potable and edible

available in a wide selection of micron ratings, ranging from 0.5 - 100 micron

drinking water treatment

pre-filtration for RO+DI

acid and lye filtration in electronic industry, platings, high-technology coatings, chemicals, and solvents

raw material:
polypropylene

filtration precision:
1, 5, 10, 20, and 50 micron

dimensions:
standard 2.5in x 10in

Filter Size 1 micron 5 micron 10 micron 20 micron 50 micron
2.5in x 10in

3.91gpm

4.06gpm

4.20gpm

4.35gpm

4.46gpm

pressure drop:
1psi

max operating pressure (ºF):
176 ºF

max feed pressure resistance (psi):
100psi
